2011-2014 Roush Mustang Supercharger - Phase 2 625 HP

Product Highlights for the 2011-2014 Roush Mustang Supercharger - Phase 2 625 HP:

• R2300 Supercharger featuring Eaton's new TVS Technology. The new Twin Vortices Series boasts four-lobe rotors with high-flow inlet and outlet ports that significantly enhance thermal efficiency, enabling greater volumetric capacity at higher RPMs.

• Fuel charging assembly with Roush-designed upper and lower aluminum intake manifolds.

• High-efficiency intercooler system featuring a large full-face low-temperature radiator, oversize coolant degas bottle, high-capacity air-to-water intercooler, and formed hoses with abrasion-resistant sleeves.

• Twin 60mm throttle body and throttle body spacer.

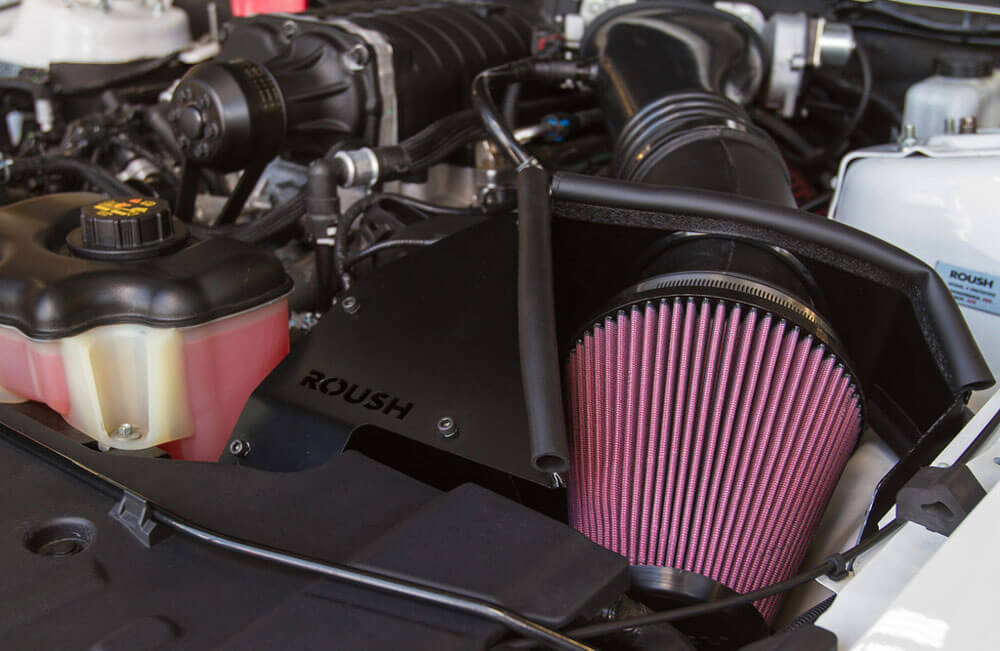

• Roush cold air induction system.

• High-flow fuel rail with 47lb injectors.

• Bolt-on 85mm pulley.

• Calibrated using the Roush Diagnostic Tool (RDT) software.

• Delivers 625 horsepower and 525lb-ft of torque (205-213 hp gain and 135 lb-ft gain over stock).

• Compatible with 2011-2014 Ford Mustang 5.0L 4v engine (excludes BOSS 302).

• Includes a 3 Year/36,000 Mile Parts limited warranty (Roush Supplied Parts Only).

• NOTE: Not approved for sale or installation in California or states that require an EO number.

• The Ford Mustang Phase 2 Supercharger Kit by Roush is meticulously calibrated to unleash 625 HP and 525 FT/LB of torque for your 2011-2014 Ford Mustang 5.0L 4v V8 powertrain, providing a substantial increase of 205-213 HP and 135 FT/LB over the stock configuration.


The Roush 2011-2014 5.0L Ford Mustang Phase 2 Calibrated Supercharger Kit belongs to the TVS (Twin Vortices Series) line of superchargers developed by Roush, setting new standards for performance and reliability. This esteemed line has been tried and tested in Roush-built Mustangs and F-150 vehicles for years.

The Roush R2300 supercharger showcases Eaton's cutting-edge Twin Vortices Series technology (TVS) rotating assembly, delivering more power and enhanced fuel economy within a more compact package, ensuring uncompromising performance.

The Roush R2300 TVS supercharger is a roots-type, positive displacement supercharger equipped with twin four-lobe rotors twisted 160-degrees.

In comparison, the original Eaton supercharger rotating assembly had three lobes twisted at 60 degrees. The addition of the fourth lobe and increased twist, combined with redesigned air inlet and outlet ports, significantly improves thermal efficiency, enhances volumetric capacity, allows for higher operating speeds, promotes a smoother and more efficient airflow into the engine, and results in improved noise and vibration characteristics.

Unlike turbocharging, the Roush R2300 TVS supercharger delivers instantaneous throttle response and generates increased power throughout the engine's entire powerband.

This kit now utilizes the Roush Flash Voucher card for calibration using the Roush Diagnostic Tool (RDT) software and pass-thru device. If you don't have access to an approved pass-thru device, you can opt to send your PCM back to Roush for flashing, subject to an additional $100.00 fee.

When installed according to 2014 Mustang instructions and using the latest released calibration, this kit complies with EPA guidance and does not constitute tampering under the Clean Air Act.

*Power figures are based on optimal conditions using 93-octane fuel. Actual results may vary depending on octane, intake air temps, humidity, manifold charge temps, gearing, wheel/tire combination, and the type of dynamometer used.

Warranty
The supercharger kit benefits from Roush Parts limited warranty (Roush Supplied Parts Only), offering coverage for 3 years or 36,000 miles from the original installation date.
